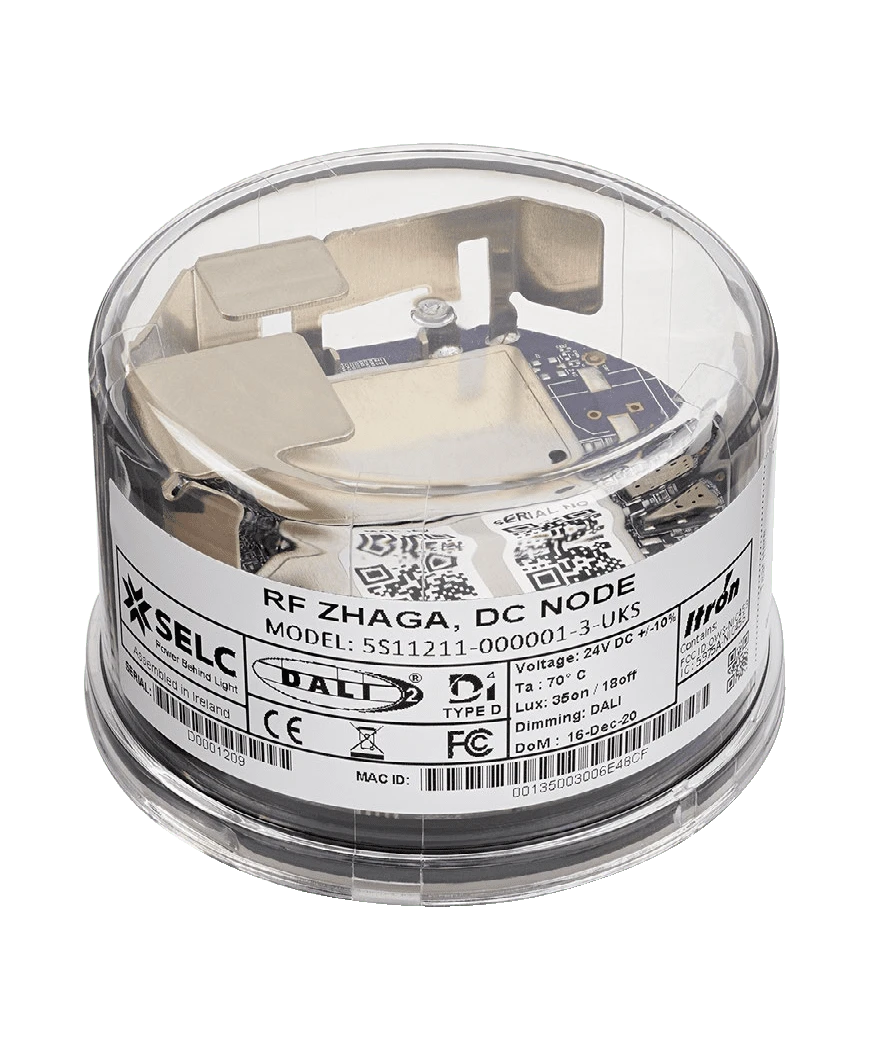

Itron-Zhaga NLC image 1

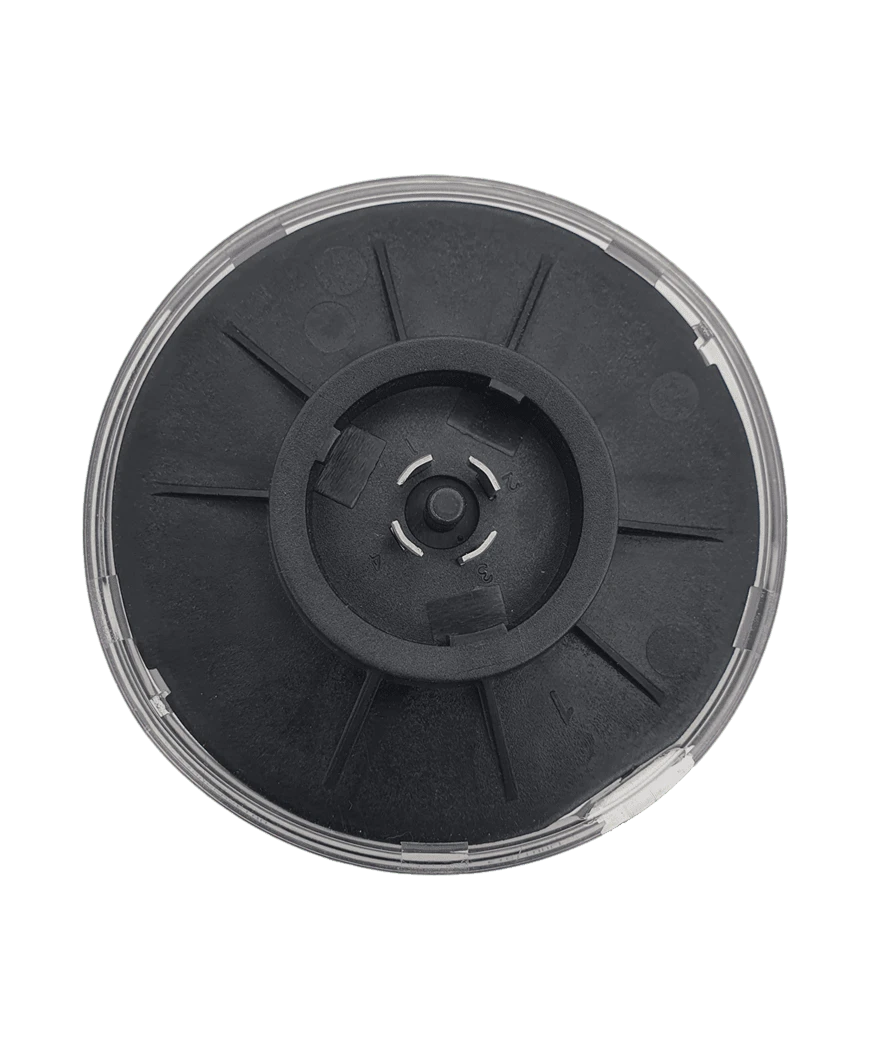

Itron-Zhaga NLC image 2

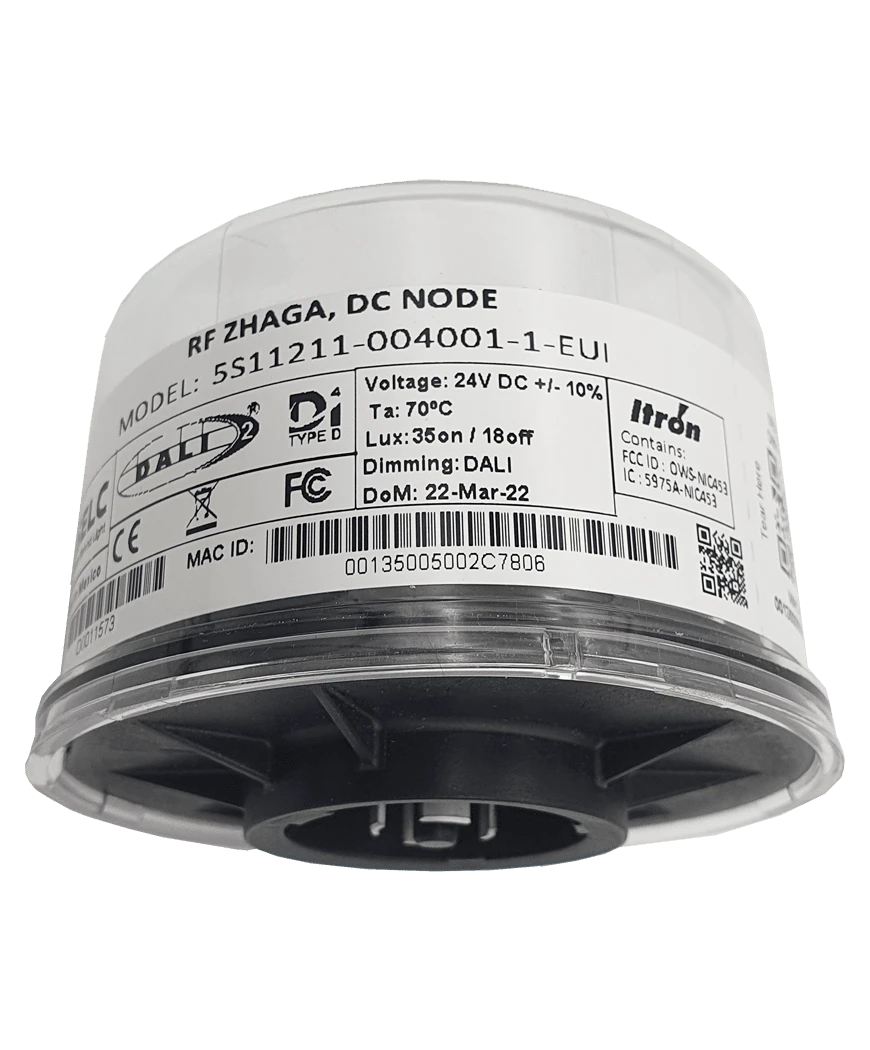

Itron-Zhaga NLC image 3
Itron-Zhaga NLC image 4

Itron-Zhaga NLC

Product Code : Zhaga Lighting Controller

LED Luminaire controller with Zhaga Socket (Book-18) DALI2 / D4i Interface. From Small Pilot Implementations to Metropolitan or Country-wide implementations.

General Features Technical Specifications Standarts
  • Zhaga-DALI / D4i certified external wireless luminaire module.
  • Compact Design.
  • Universal Luminaire Plug-and-Play Compatibility.
  • Bidirectional Control and Monitoring.
  • Energy saving + savings when used in combination with LED luminaires.
  • Remote dimming controls that further extend the life of LED Luminaires.
  • Operational savings of up to an extra 40% thanks to Control and Monitoring.
  • Energy Metrology in your hands with 0.5% Sensitivity.
  • All data is recorded on a Daily, Hourly or Minute basis.
  • Robust multi-layered security with end-to-end encryption (AES-128/256)
  • Remote Configuration and Firmware Upgrades.
  • Cloud-based or On-Premises Management.
  • Control via Web Interface / Mobile Application.
  • Real-time Easy Control with Map Based Interface.
  • Lighting Profiling and Execution.
  • Daily, Weekly, Monthly and Annual Calendar Operation..
  • Instant Fault Detection, Analysis and Reporting.
  • Proven Itron Network Technology, Quality and Reliability.
  • From Small Pilot Implementations to Metropolitan or Country-wide implementations.

Product Code
Body
Input Voltage
Power Consumption
Protocol
RF Spectrum


Network
Communication Rate
Network Tehnology
Security

DIMM Interface
Working Mode
Photocell

Compatibility
Operating Temperature
IP Protect Class
Weight
Dimensions
Warranty Period




SELC 5S Series 4-Pin External NLC
UV Stabilized Polycarbonate
24V DC +/- %10
<1,5W Average
IEEE 802.15.4g  IPv6
868 - 876 MHz
EU873, EU876, EUA02, EUB10, EUB14
Frequency Bands
Mesh Network
300 kb/s
Wi-SUN
AES-128/256 Encryption
Embedded Firewall
DALI I / DALI II / D4i
Automatic / Manuel
18Lux/35Lux On/OFF
Configurable On/OFF Lux Levels
FCC, RoHS, CE
-30 / +70 °C
IP 66
115 gr
55 x 80  mm
2 year
Extended Warranty Available



























































  • ISO 9001:2015

  • EN 55015

  • EN 61547

  • EN 61000-3-2

  • EN 61347

  • EU Directive 2014/53/EU

  • RoHS

  • FCC

  • CE
