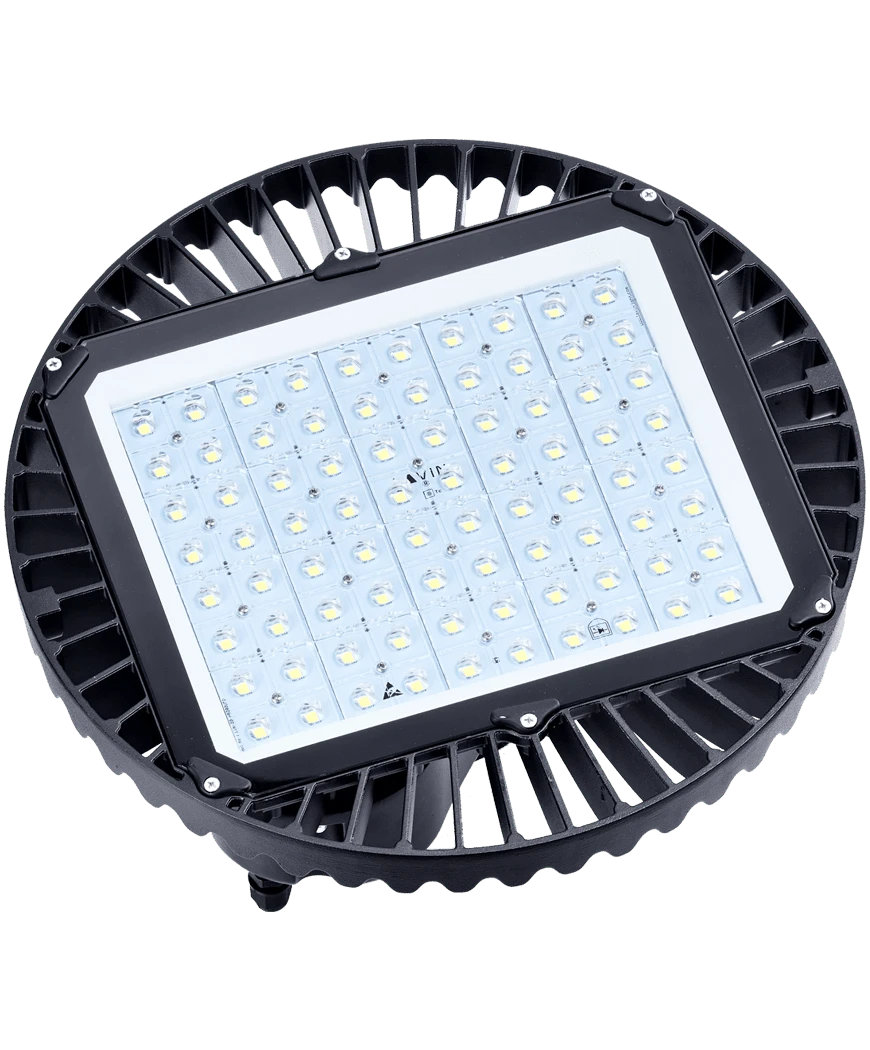

HB 200 image 1

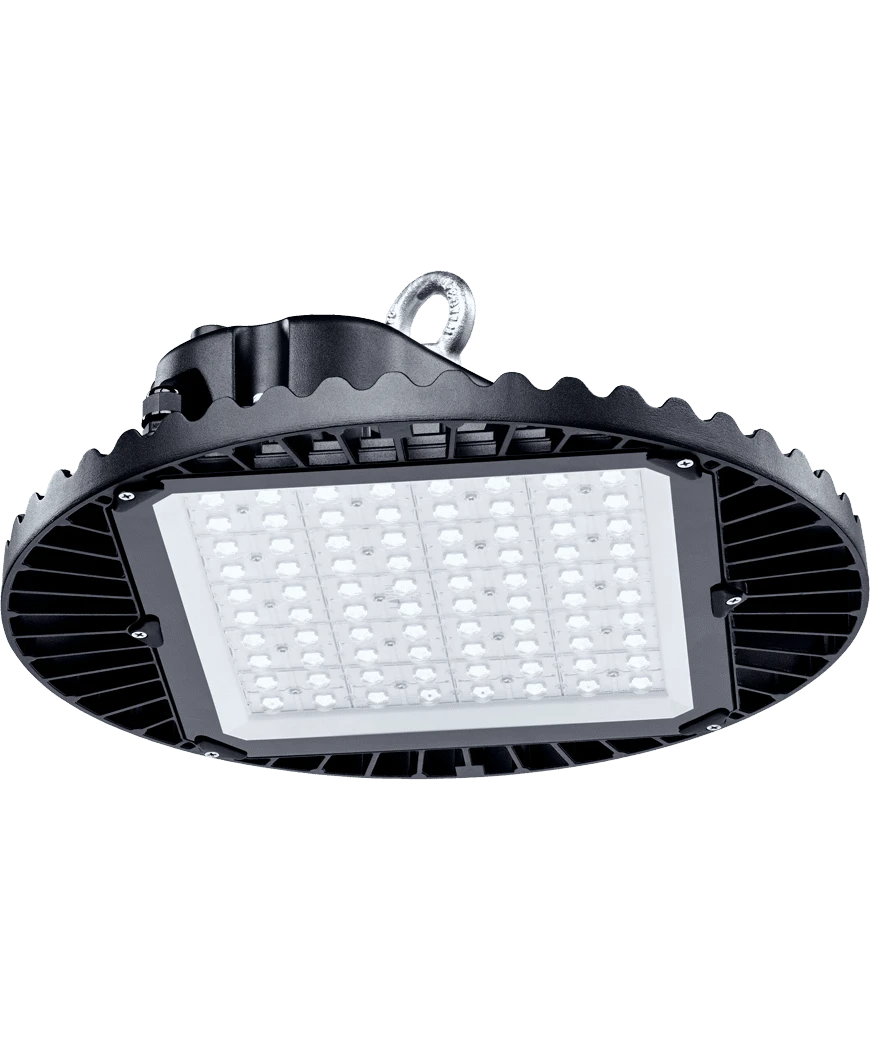

HB 200 image 2

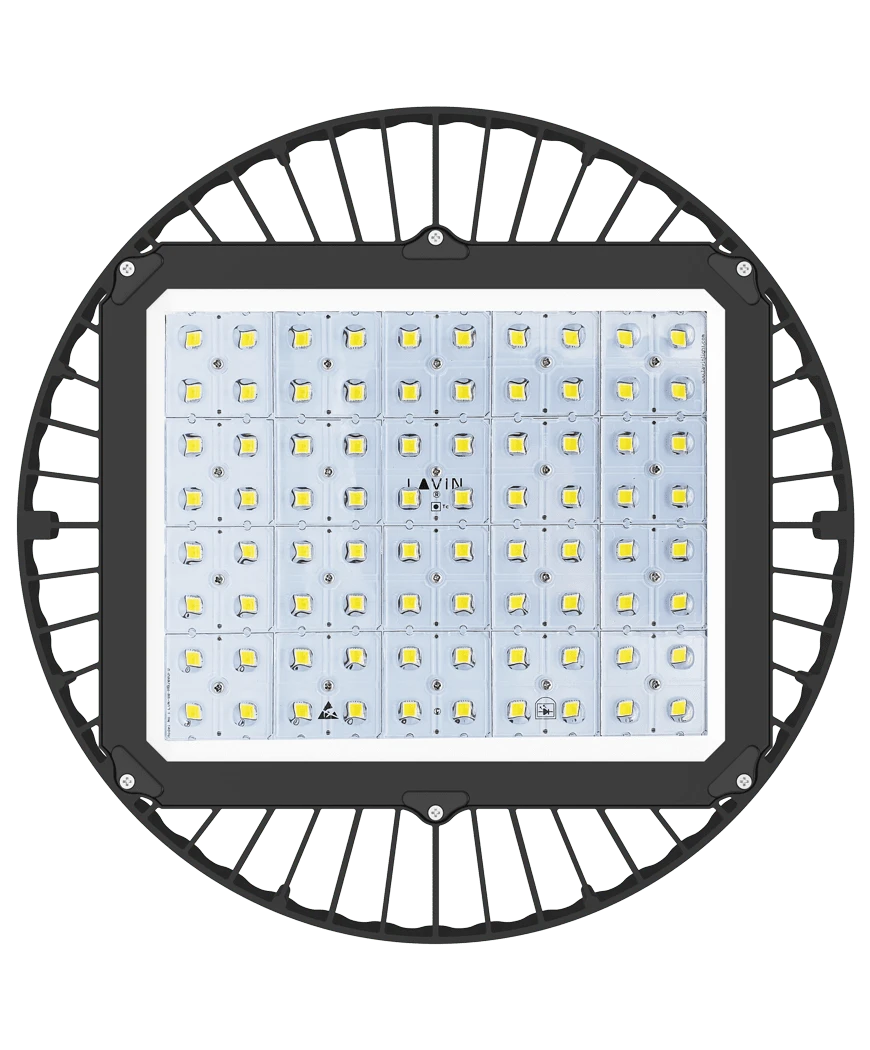

HB 200 image 3

HB 200

Product Code : LVN-80-HB200UFO

Industrial Lighting Series 200W

General Features Technical Specifications Applications Standarts Technical Drawing
  • Perfect Mold Design, Integrated Pressure Die-Casting Aluminum.
  • Flat-Elegant Design, Excellent Heat Dissipation.
  • Light/Energy High Efficiency.
  • SDCM ( Standard Deviation Colour Matching ) <5.
  • Beam Angle ; 30°- 45° - 60°- 90°-Type II-Type III
  • 1-10V / DALI / D4i / Light Sensor / Smart Timer Dimming.
  • LED Driver Thermal Protection.
  • Robotic Electrostatic Powder Coating.
  • Paint Code RALXXXX, which can change according to customer request.
  • IK10 Aluminum Body.
  • IK08 Tempered Glass.
  • Pressure Balancing Valve that creates Airflow to eliminate moisture inside.
  • Ease of Installation.
  • Our products are Brand and Design Registered.

Product Code
Body
Power
Input Voltage Range
Power Factor
Total Harmonic (I)
LED Pieces
Lumen
Color Temperature
Color Rendering Index ( CRI )
LED (LM80) Life
DIMM
Operating Temperature

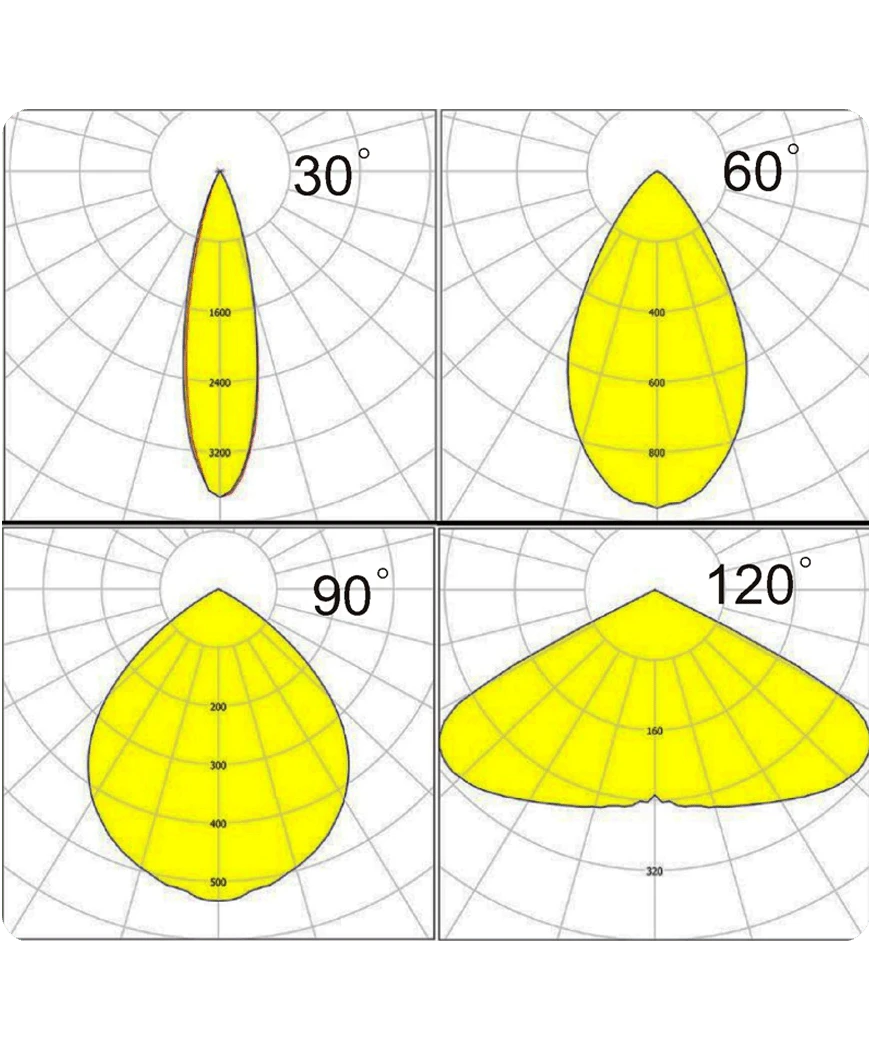

Lighting Angle
IP Class
Insulation Class
Front Side
Weight
Dimensions
Warranty Period
Model I
LVN-80-HB200UFO
Aluminum Injection
200W
170-264 AC 50/60Hz
0,96
<8%
80 High Power / 5050
30559*
3000-4000-5000-6500K
70 Ra / 80 Ra (Option)
L70B10@85°C >102Kh
1-10V/DALI/STD Option
-30 / +50 °C
30° - 60° - 90°-120°-Type II / Type III
IP 65
Class I
4mm Tempered Glass
4,3 kg
400 x 174 mm
3 / 5 year











































 * Lumen values are given for 5000K & CRI 70.

  • Factory Lighting

  • Warehouse-Stock Lighting

  • Indoor Sports Hall Lighting

  • Production Areas Lighting

  • Shopping Mall - Supermarket Lighting

  • Exhibition Hall Lighting

  • Shipyard Lighting

  • EN 60598-1

  • EN 60598-2-1

  • LM79

  • LM80 & TM21

  • CE
