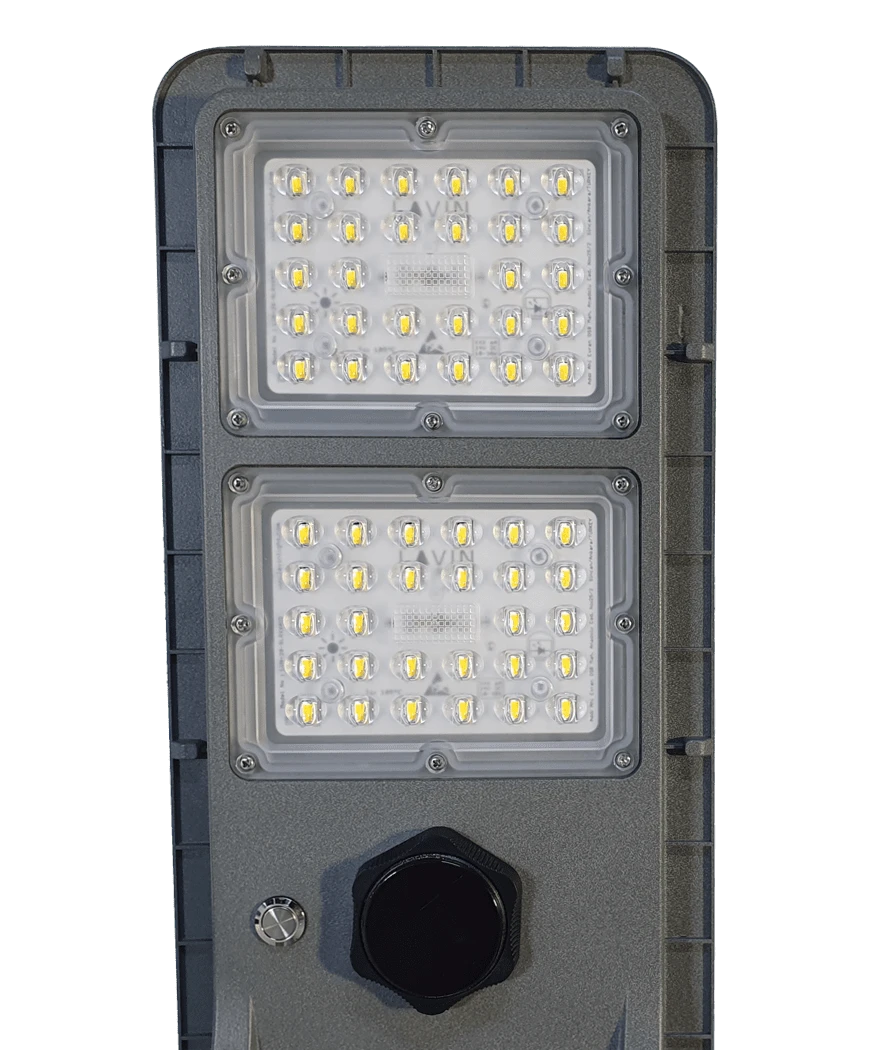

AIO 30 image 1

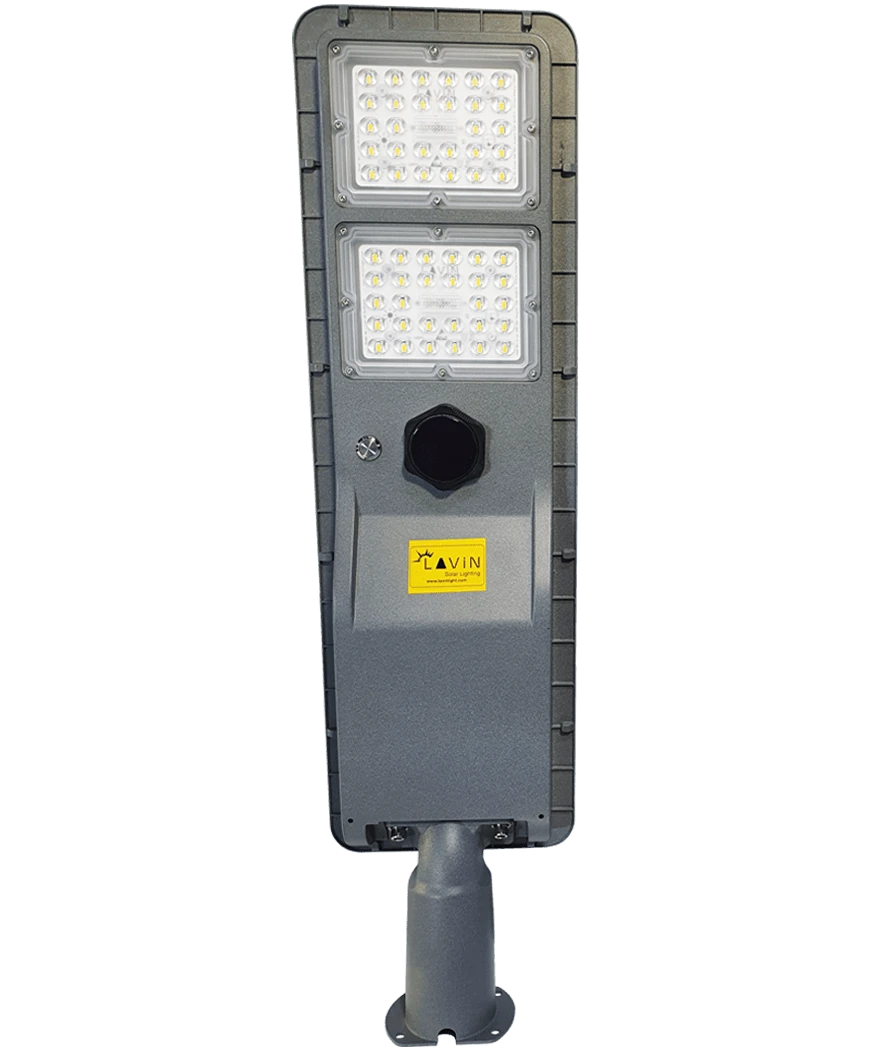

AIO 30 image 2

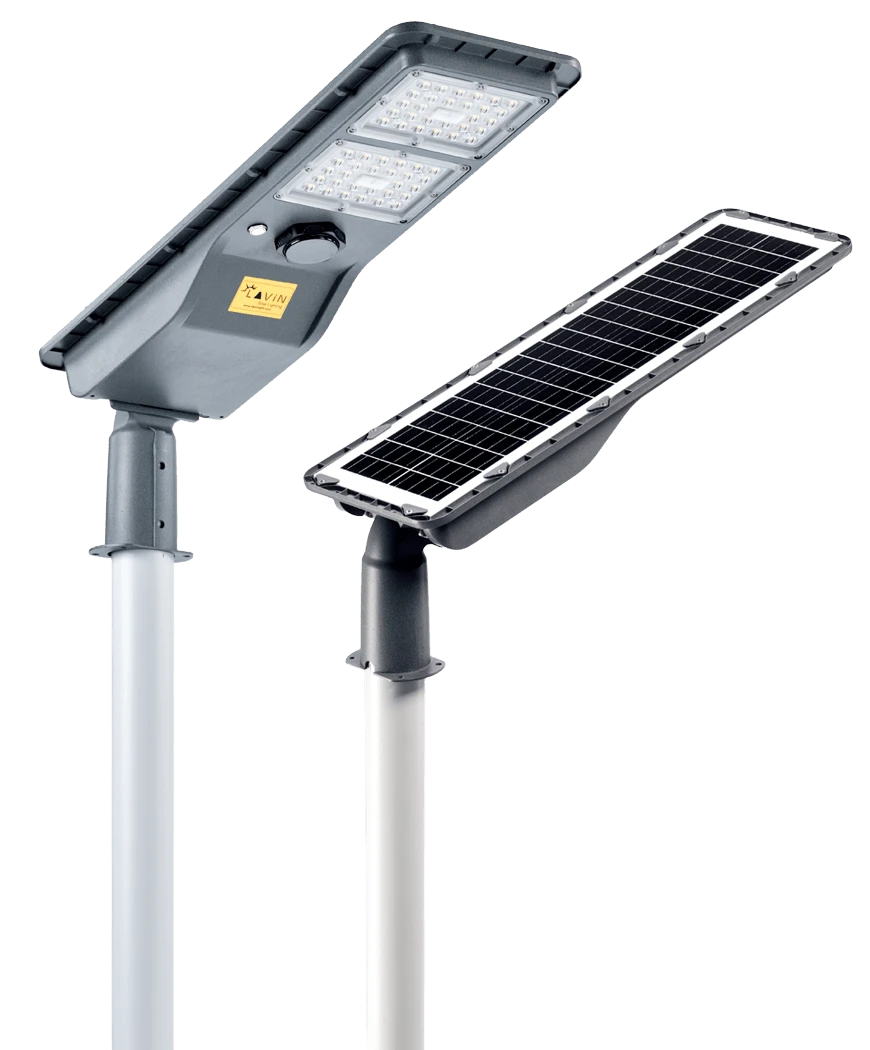

AIO 30 image 3

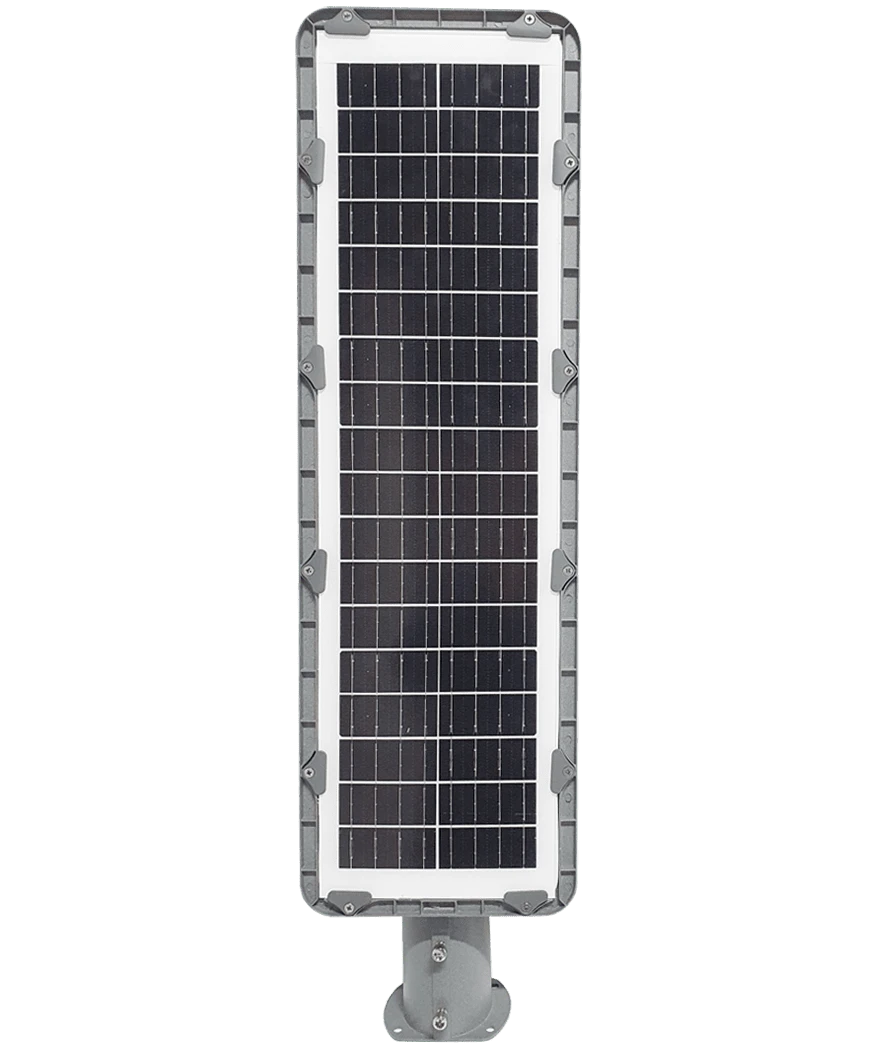

AIO 30 image 4

AIO 30

Product Code : LVN-56-SSL30SHE

The Sunshine series is the 30W large model of the all-in-one series.

General Features Technical Specifications Applications Standarts Technical Drawing
  • New Technology Aluminum Mold and Injection Technique.
  • Perfect Surface Quality and Excellent Design.
  • Excellent Heat Dissipation.
  • High Light and Energy Efficiency.
  • Standard Deviation Color Matching SDCM MacAdam<5.
  • Lens Light Distribution; IESNA Type II or Type III.
  • Integrated Monocrystalline Solar Panel.
  • MPPT Solar Charge Controller.
  • LiFePO4 Battery
  • Built-in LED Driver.
  • Robotic Electrostatic Powder Coating.
  • Paint Code (RALXXXX) that can be changed upon customer request).
  • IK10 Aluminum Body.

Product Code
Body
Solar Panel Power
LED Power
Battery Voltage
Battery Type
Battery Capacity
LED Pieces
Lumen
Color Temperature
Color Rendering Index( CRI )
LED (LM80) Life
Operating Mode


Operating Temperature
Lighting Curve
IP Class
Front Side
Vertical Adjust
Weight
Dimensions
Warranty Period
Model I
LVN-56-SSL30SHE
Aluminum Injection
20 W / Monocryristalline
30W
12,8V
LiFePO4
12000 mAh
56 High Power / 5050
3850*
3000-4000-5000-6500K
70 Ra / 80 Ra (Option)
L70B10@85°C >102Kh
Microwave Motion Sensor
Smart Timer DIMM
Sun / Dusk to Down
-30 / +50 °C
Type II / Type III
IP 65
IP 66 PMMA Lens
0° - 90°
3,5 kg
200 x 753 x 92 mm
2 year

















































 * Lumen values are given for 4000K & CRI 70.

  • Road and Street Lighting

  • Park-Garden Lighting.

  • Walkways Lighting

  • Wide Area Lighting

  • EN 60598-1

  • EN 61215 & EN 61730

  • LM 79

  • LM 80 & TM 21

  • CE
