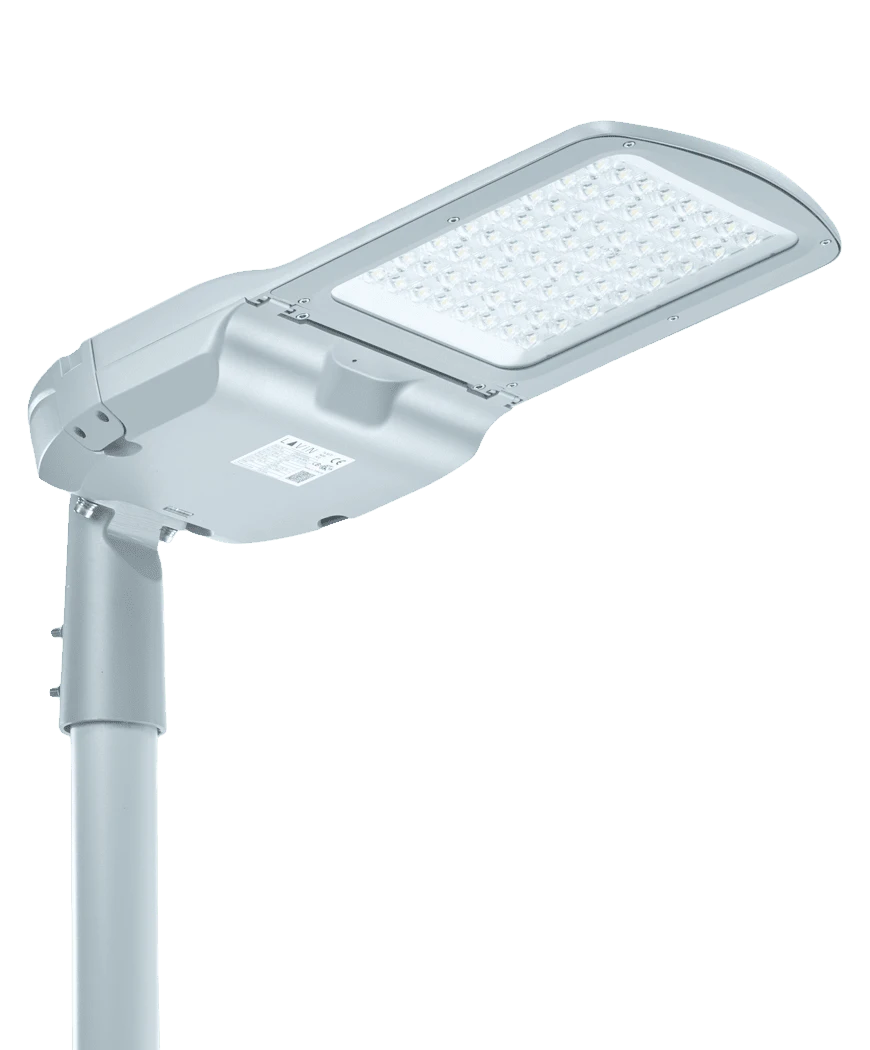

FLAT Model 4 image 1

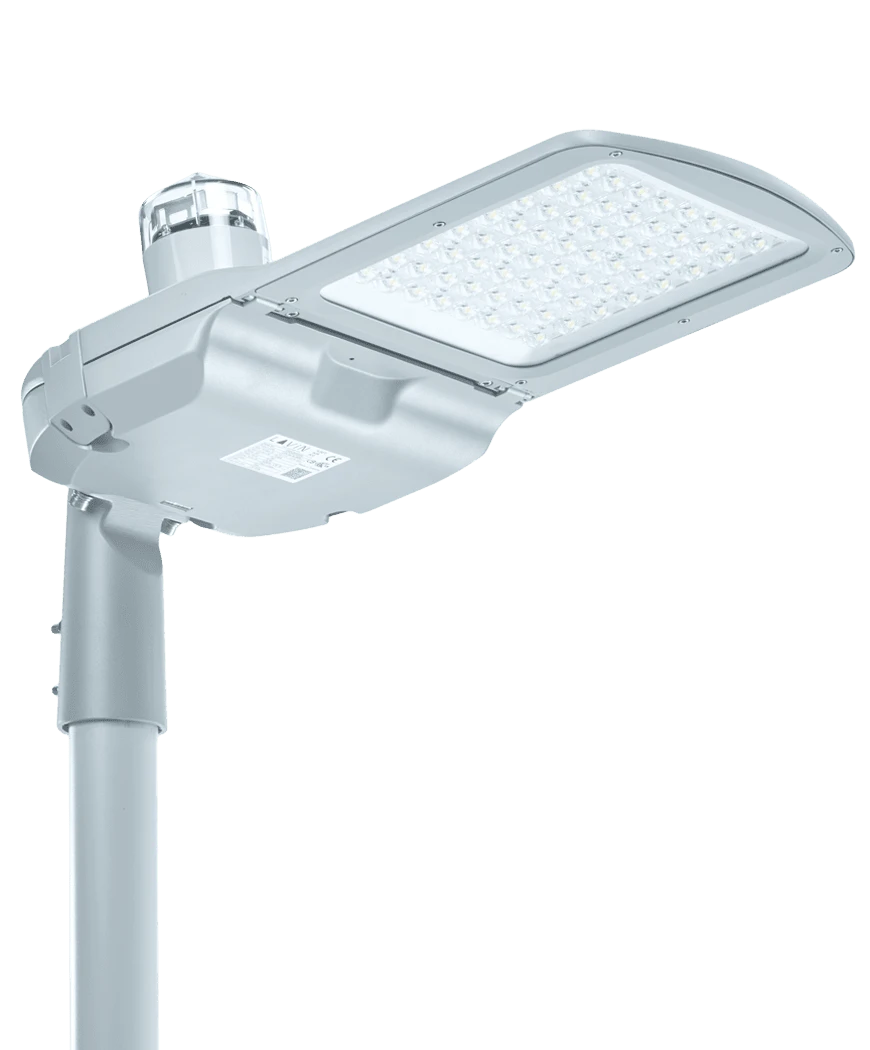

FLAT Model 4 image 2

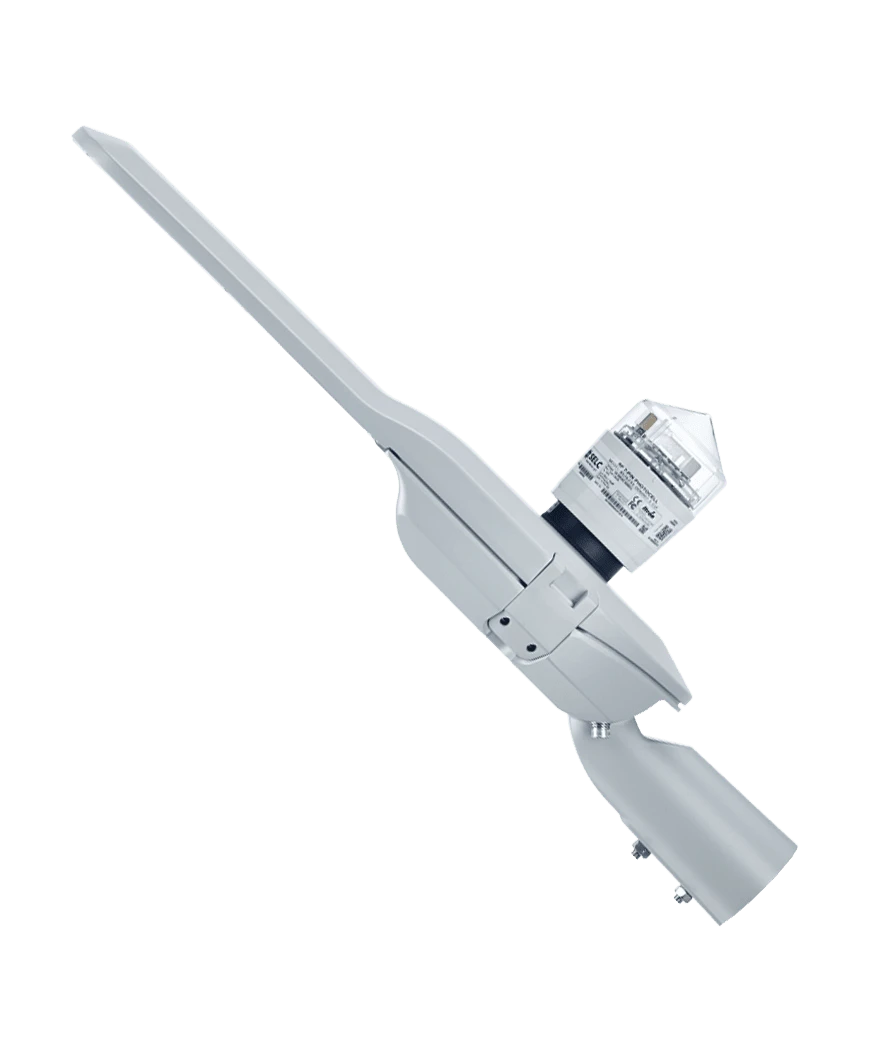

FLAT Model 4 image 3

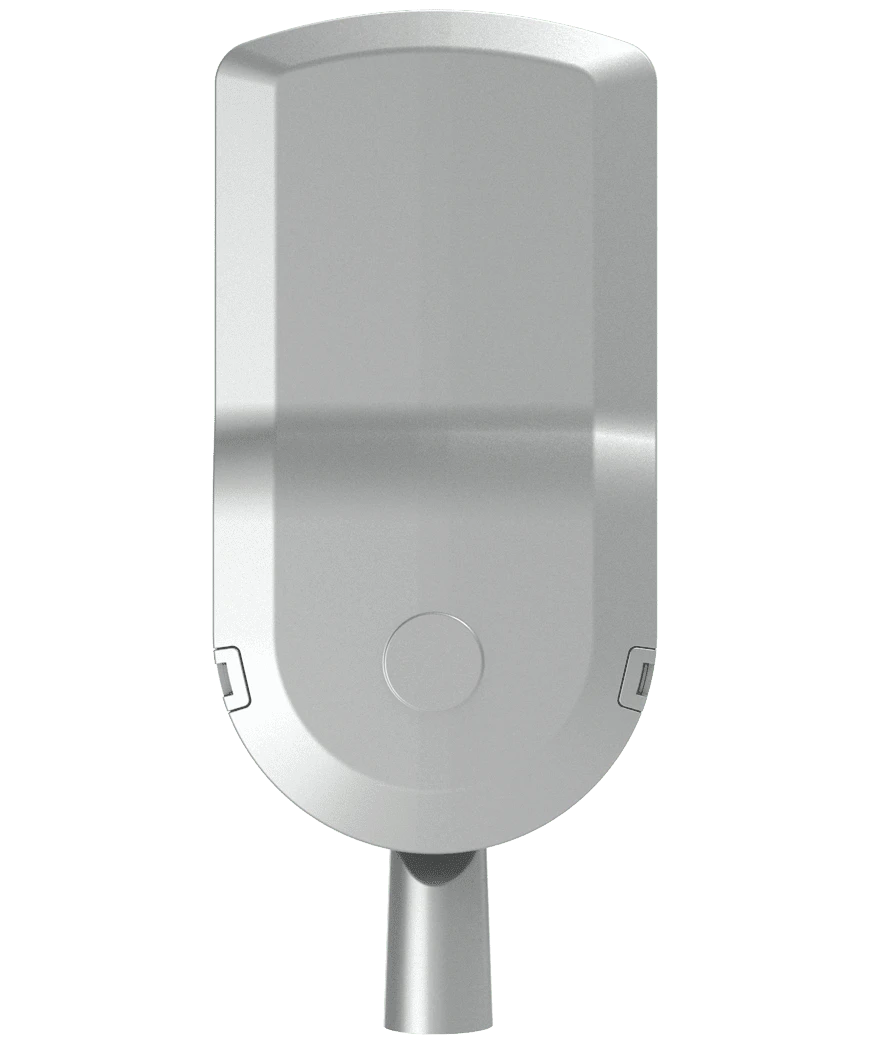

FLAT Model 4 image 4

FLAT Model 4

Product Code : LVN-64-SLXXFLT

Flat Series is the fourth product. It is produced in 130-150W Power Range. There are 64 LED Options.

General Features Technical Specifications Applications Standarts Technical Drawing
  • New Technology Aluminum Mold and Injection Technique..
  • Perfect Surface Quality and Excellent Design.
  • Slim-Sleek Wingless Structure, Excellent Heat Dissipation.
  • Key or Tool-Free Access.
  • High Light and Energy Efficiency.
  • Standard Deviation Color Matching SDCM MacAdam<5.
  • Lens Light Distribution; IESNA Type II or Type III.
  • Smart Lighting Infrastructure with optional NEMA & ZHAGA Socket.
  • 1-10V / DALI / D4i or Intelligent Timed Dimming.
  • LED Driver Thermal Protection.
  • Robotic Electrostatic Powder Coating.
  • Paint Code (RALXXXX) that can be changed upon customer request).
  • IK10 Aluminum Body.
  • IK08 4mm Tempered Glass.
  • Easy Installation with Ready Water Scale.
  • Internal / External Pressure Balancing Valve.
  • Optional 10kV/20kV external SPD.

Product Code
Smart Management
Body
Power
Input Voltage Range
Power Factor
Total Harmonic (I)
LED Pieces
Lumen
Color Temperature
Color Rendering Index ( CRI )
LED (LM80) Life
DIMM
SPD
Operating Temperature
Lighting Angle
IP Class
Insulation Class
Front Side
Arm Diameter
Vertical Adjust Angle
Weight
Dimensions
Warranty Period
Model I
LVN-64-SL130FLT
NEMA/Zhaga Option
Aluminum Injection
130W
100-277 AC 50/60Hz
0,97
<5%
64 High Power
18837*
2000-3000-4000K
70 Ra / 80 Ra (Option)
L70B10@85°C >102Kh
1-10V/DALI Option
10kV/20kV Option
-30 / +50 °C
Type II / Type III
IP 66
Class I
4mm Tempered Glass
40-60mm
0° - 5° - 10° - 15° - 90°
5,7 kg
300 x 693 x 109 mm
3 / 5 year
Model II
LVN-64-SL140FLT
NEMA/Zhaga Option
Aluminum Injection
140W
100-277 AC 50/60Hz
0.97
<5%
64 High Power
20021*
2000-3000-4000K
70 Ra / 80 Ra (Option)
L70B10@85°C >102Kh
1-10V/DALI Option
10kV/20kV Option
-30 / +50 °C
Type II / Type III
IP 66
Class I
4mm Tempered Glass
40-60mm
0° - 5° - 10° - 15° - 90°
5,7 kg
300 x 693 x 109 mm
3 / 5 year
Model III
LVN-64-SL150FLT
NEMA/Zhaga Option
Aluminum Injection
150W
100-277 AC 50/60Hz
0.98
<4%
64 High Power
21065*
2000-3000-4000K
70 Ra / 80 Ra (Option)
L70B10@85°C >102Kh
1-10V/DALI Option
10kV/20kV Option
-30 / +50 °C
Type II / Type III
IP 66
Class I
4mm Tempered Glass
40-60mm
0° - 5° - 10° - 15° - 90°
5,7 kg
300 x 693 x 109 mm
3 / 5 year

 * Lumen values are given for 4000K & CRI 70.

  • Road and Street Lighting

  • Highway Lighting

  • Park & Garden Lighting

  • Walking Path Lighting

  • Wide Area lighting

  • ENEC ( Continues )

  • CB ( Continues )

  • EN 60598-1

  • EN 60598-2-3

  • EAC

  • LM 79

  • LM 80 & TM 21

  • CE
